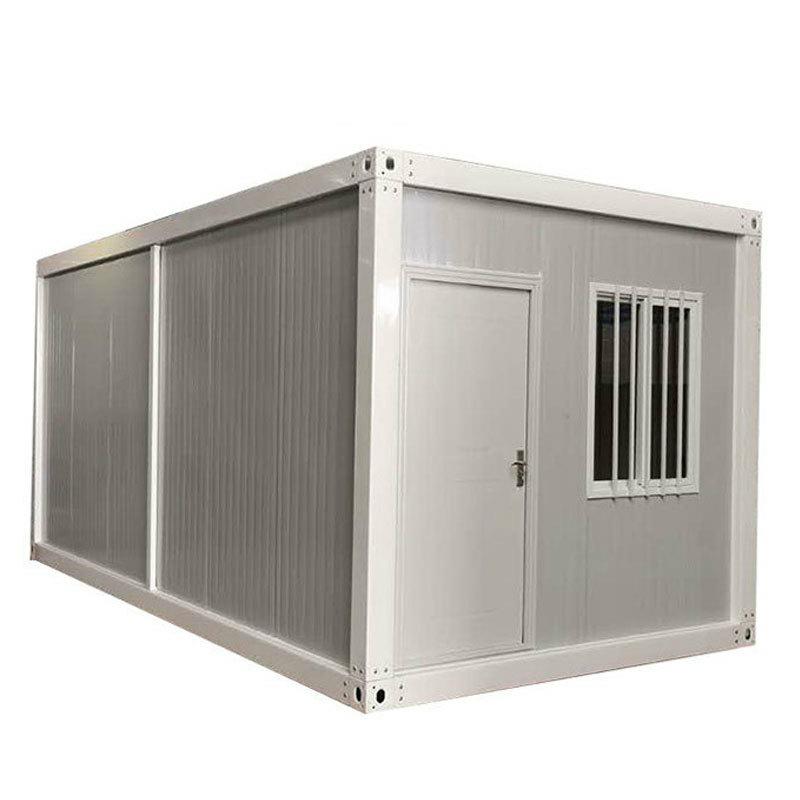

Container house is a kind of modular house, consisting of light steel frame and thermal insulation material. It is a new type of energy conservation and environment protection house. Container house is assembled together by bolts and screw, so it can be installed quickly.

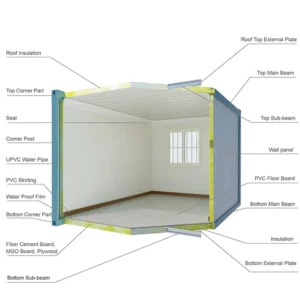

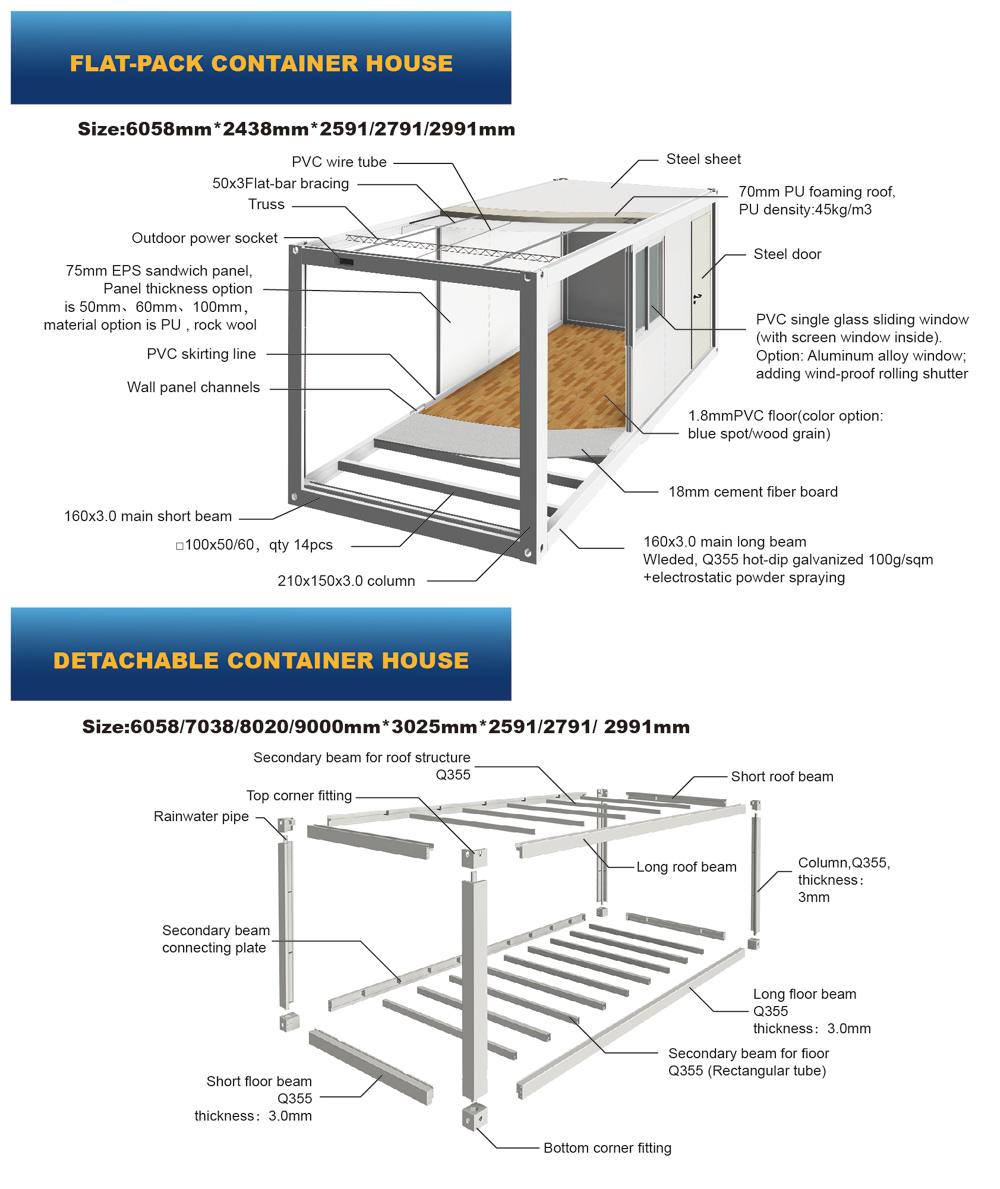

The flat-pack container house is made of steel frame structure, the steel is cold bending galvanized material.The structure consists of a top frame component, a corner column system and a bottom component.Each system module is manufactured in the factory and assembled on site.Standard container as the basic unit, like building blocks for horizontal or vertical free combination of various forms, can be stacked three layers, flexible space and prefabricated functional to achieve functional diversification.
It saves time and energy and reduce the trouble of building. It’s’ advantages include easy transportation, good mobility, high stability and long work life. Container house can locate at hillside, hills, grassland, and desert, riverside. It takes up little space, sanitary and clean, with complete indoor facilities, strong stability and durability, elegant appearance. Prefab house can be designed and manufactured according to clients’ requirements.
| Size | Length | 6058mm / 6000mm or customized |
| Width | 2438mm /3000mm or customized | |
| Height | 2600mm / 2791mm / 3000mm or customized | |
| Clear height indoor | 5800mm*2200mm*2300mm, it is changable | |
| Standard accessory |
Roof System |
Top structure + 70mm thick integrated PU foam insulation + embedded electrical system |
| Chassis System | steel struction chassis + 18mm thickness cement-fiber board + 2mm thickness PVC floor sheet (glass wool insulation for optional) | |
| Permitted loading:>2.5KN/m2 | ||
| Wall System | 50/75/100mm EPS sandwich panel, rock wool sandwich panel,glass fiber sandwich panel, or PU sandwich panel | |
| Door System | Steel door / Fire-proof door / Sandwich panel door | |
| Window System | Aluminum alloy shutter window and the plastic-steel window, single or double glass | |
| Floor System | PVC, plywood or customized | |
| Option | Drainage system | Provided plan, design and constrution |
| Electric system | Provided plan, design and constrution | |
| Technical parameter | Resistant temperature | -40ºC to 40ºC |
| Wind resistance | 210km/h | |
| Earthquake resistance | Grade 8 |
Anhui Easy Foldable Housing Co., Ltd. (also known as “EFH”) is a professional manufacture of container house ,who has been dedicating itself to one-stop solution of prefabricated houses. The service ranges from architectural design, production, storage and transportation to installation instructions and after-sales service etc.
