Flat-pack Container
EFH flat pack container house is a modular structure that can be built quickly and easily. It is lightweight, airtight, and shock-resistant. The structure allows for unlimited compounding in both the longitudinal and transverse directions. It is a cost-effective and flexible way to build a home. It is also highly insulated and water-proof, which means it will not let in any moisture. Expandable container house can also be combined together to form a larger structure if needed.
Products Description
Size | Length | 6058mm / 6000mm or customized |
Width | 2438mm /3000mm or customized | |
Height | 2600mm / 2791mm / 3000mm or customized | |
Clear height indoor | 5800mm*2200mm*2300mm, it is changable | |
|
Roof System | Top structure + 70mm thick integrated PU foam insulation + embedded electrical system |
| steel struction chassis + 18mm thickness cement-fiber board + 2mm thickness PVC floor sheet (glass wool insulation for optional) | |
Permitted loading:>2.5KN/m2 | ||
| 50/75/100mm EPS sandwich panel, rock wool sandwich panel,glass fiber sandwich panel, or PU sandwich panel | |
Door System | Steel door / Fire-proof door / Sandwich panel door | |
Window System | Aluminum alloy shutter window and the plastic-steel window, single or double glass | |
Floor System | PVC, plywood or customized | |
Option | Drainage system | Provided plan, design and constrution |
Electric system | Provided plan, design and constrution | |
Technical parameter | Resistant temperature | -40ºC to 40ºC |
Wind resistance | 210km/h | |
Earthquake resistance | Grade 8 |

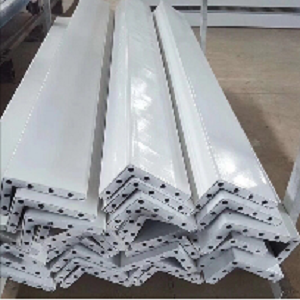

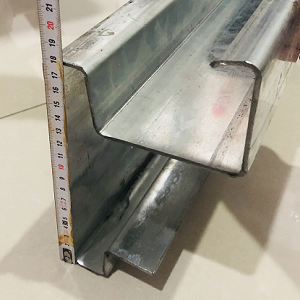

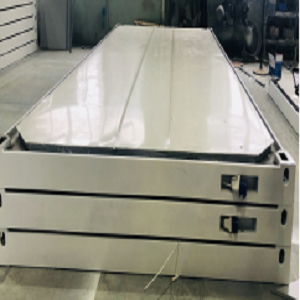

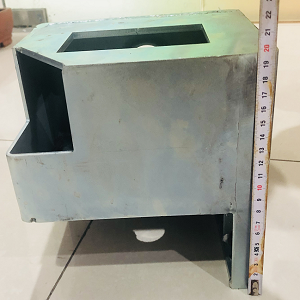

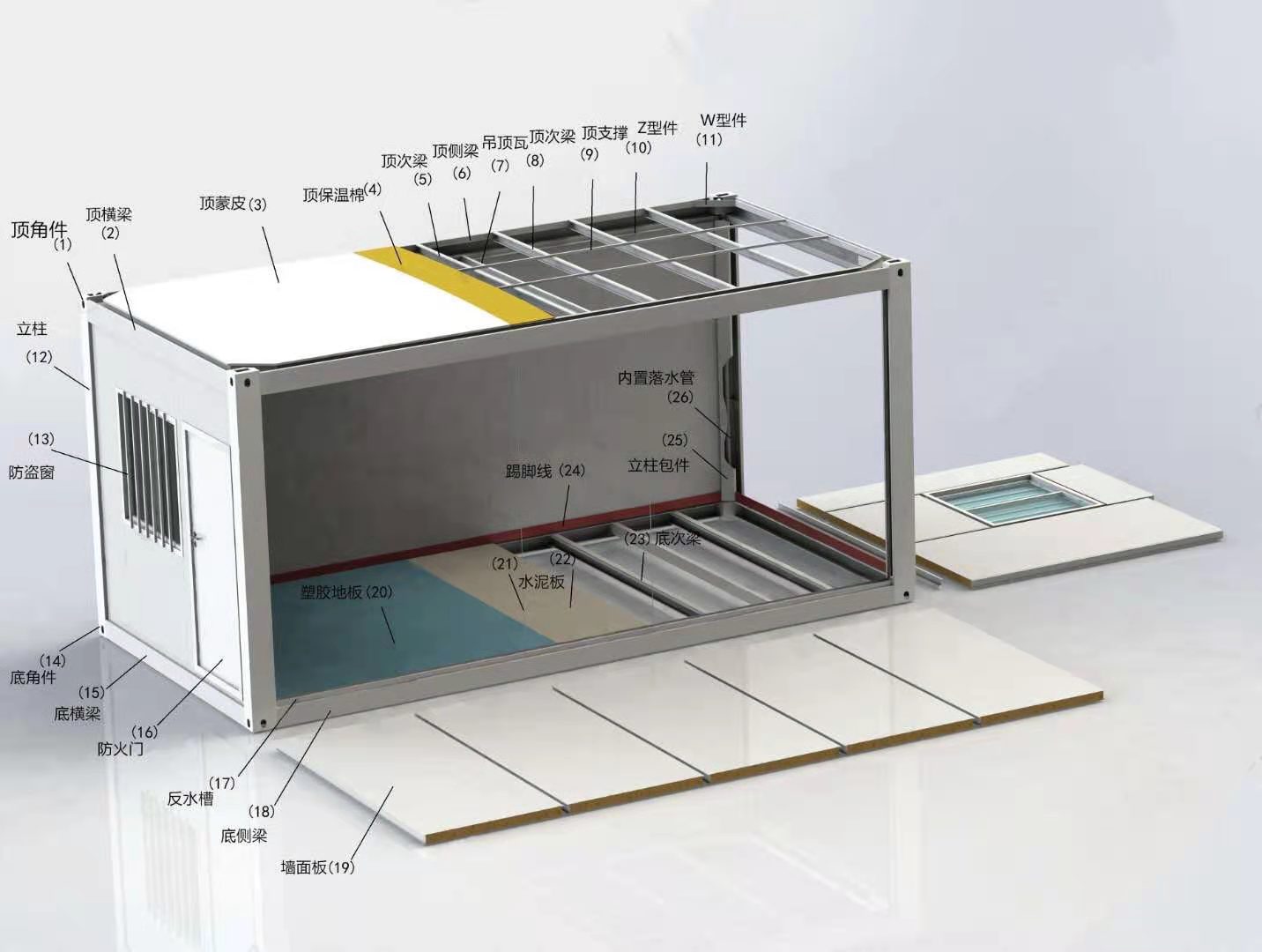

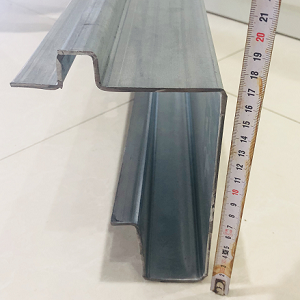

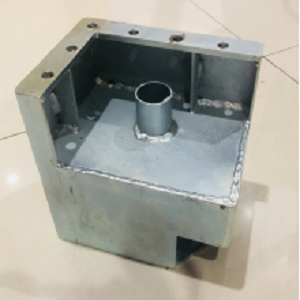

Product Details

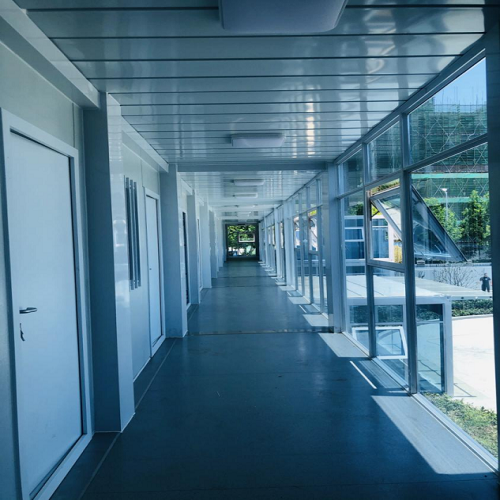

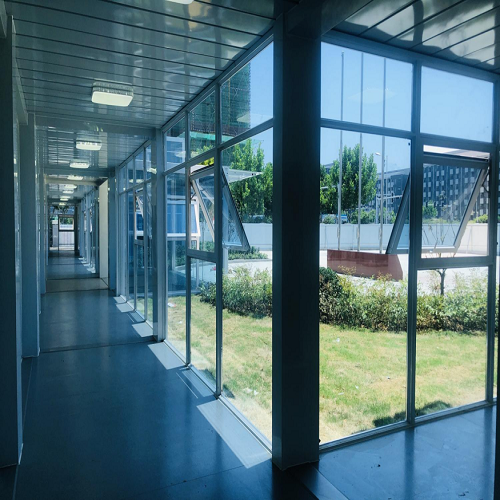

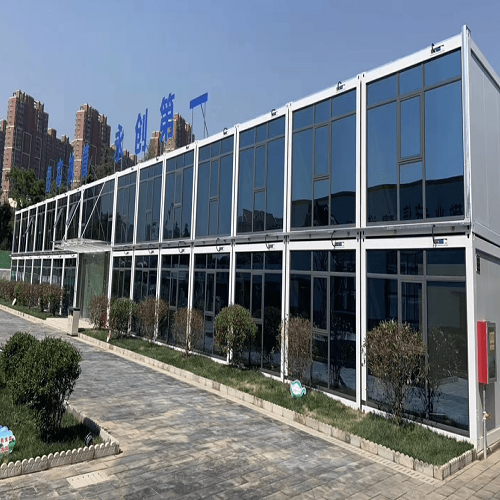

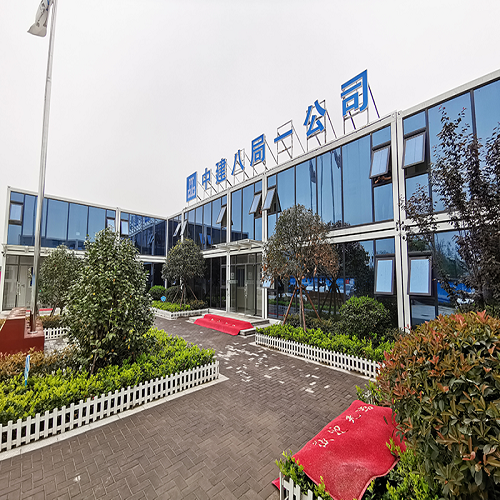

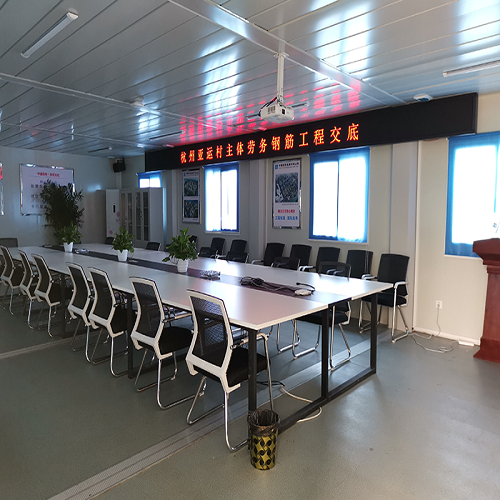

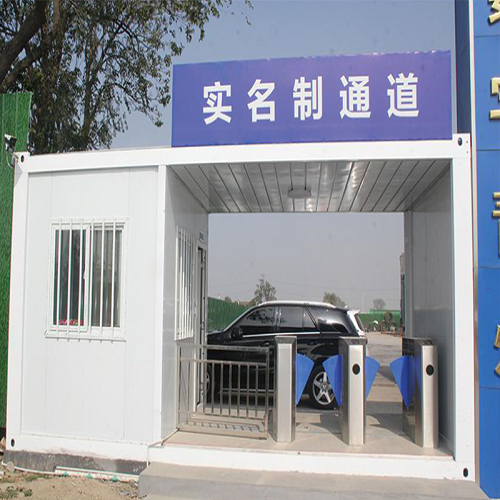

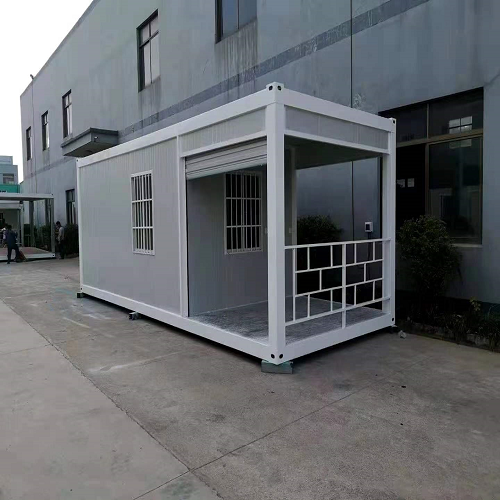

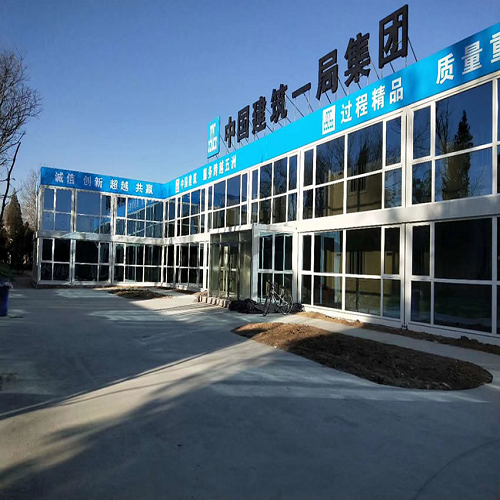

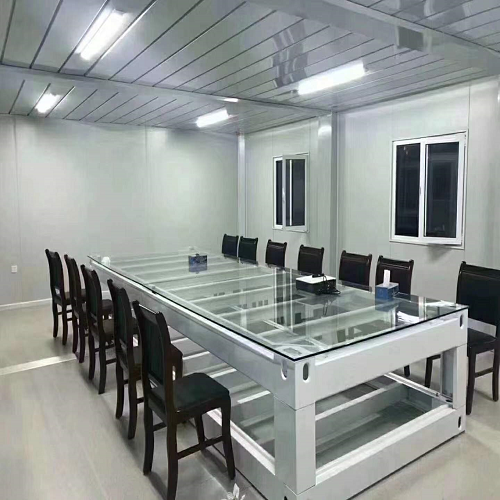

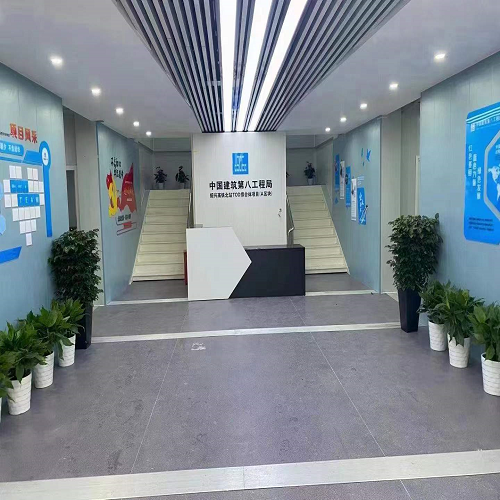

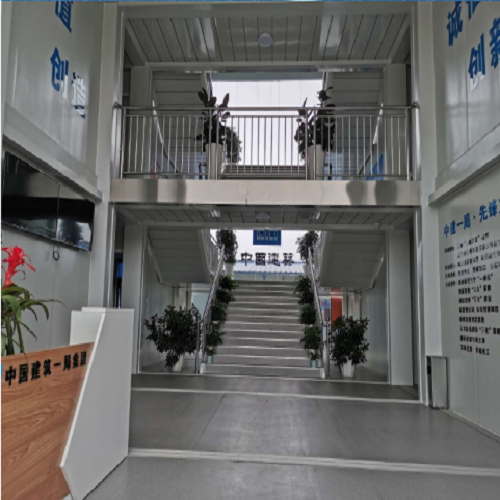

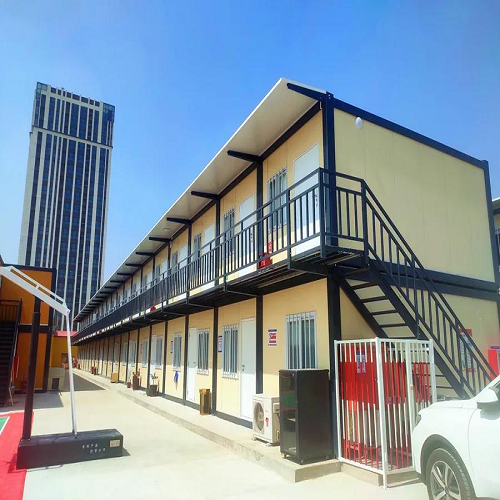

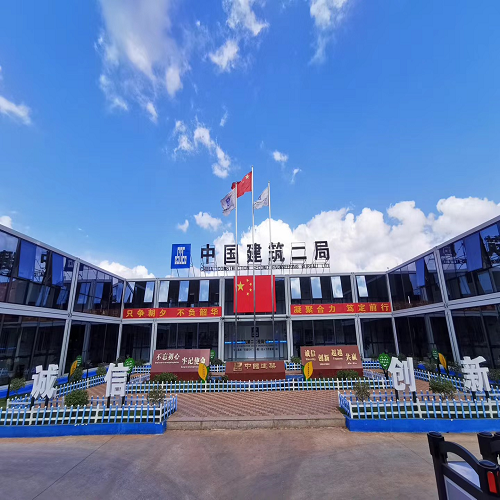

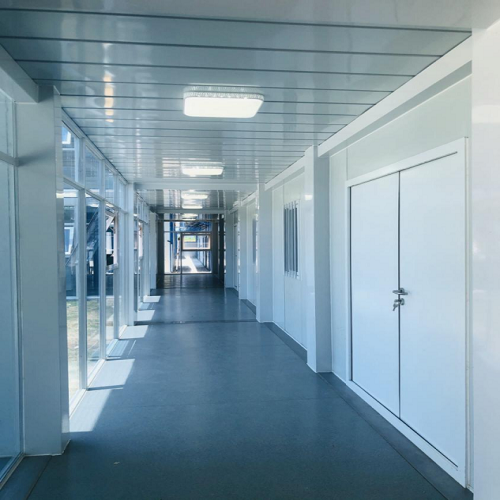

Flat-pack Container House Display
Anhui Easy Foldable Housing Co., Ltd. (also known as “EFH”) is a professional manufacture of container house ,who has been dedicating itself to one-stop solution of prefabricated houses. The service ranges from architectural design, production, storage and transportation to installation instructions and after-sales service etc.
